High Power Tubular Lowpass Filter

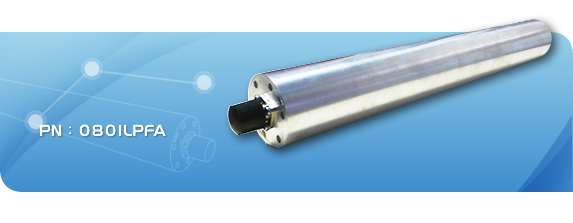

- 20~30 MHz High Power Tubular Lowpass Filter


![]() |
Measurement Results |

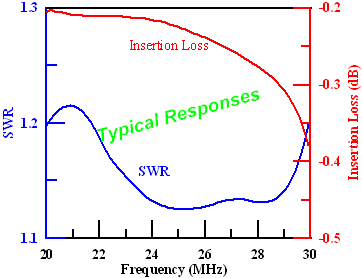

1. SWR and Insertion Loss |

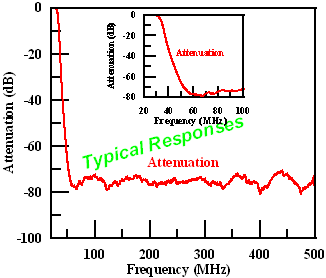

2. Attenuation |
![]() |
Features |
Low Cost, Custom Design, Low Loss, High Power |
|
![]() |
Pass Band |
20MHz~30MHz | |
![]() |
SWR |
1.25:1 Max. | |
![]() |
Insertion Loss |
0.4 dB Max | |
![]() |
Attenuation |
35 dB Min @ 40 MHz 50 dB Min @ 60~500 MHz |
|
![]() |
CW Operating Power |
2000 W (Typ.) | |
