Single Channel Rotary Joint

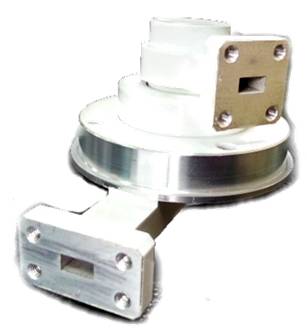

- WR28 Rotary Joint


Part No.# | JSRJU028A1 |
Type | U type |
Frequency Range | 29 ~ 31GHz |
VSWR | 1.3 max |
VSWR-WOW | -- |
Insertion Loss | 0.5dB max |
Insertion Loss-WOW | -- |
Peak Power | 2kW max |
Average Power | 20W min |
Input | WR28 |
